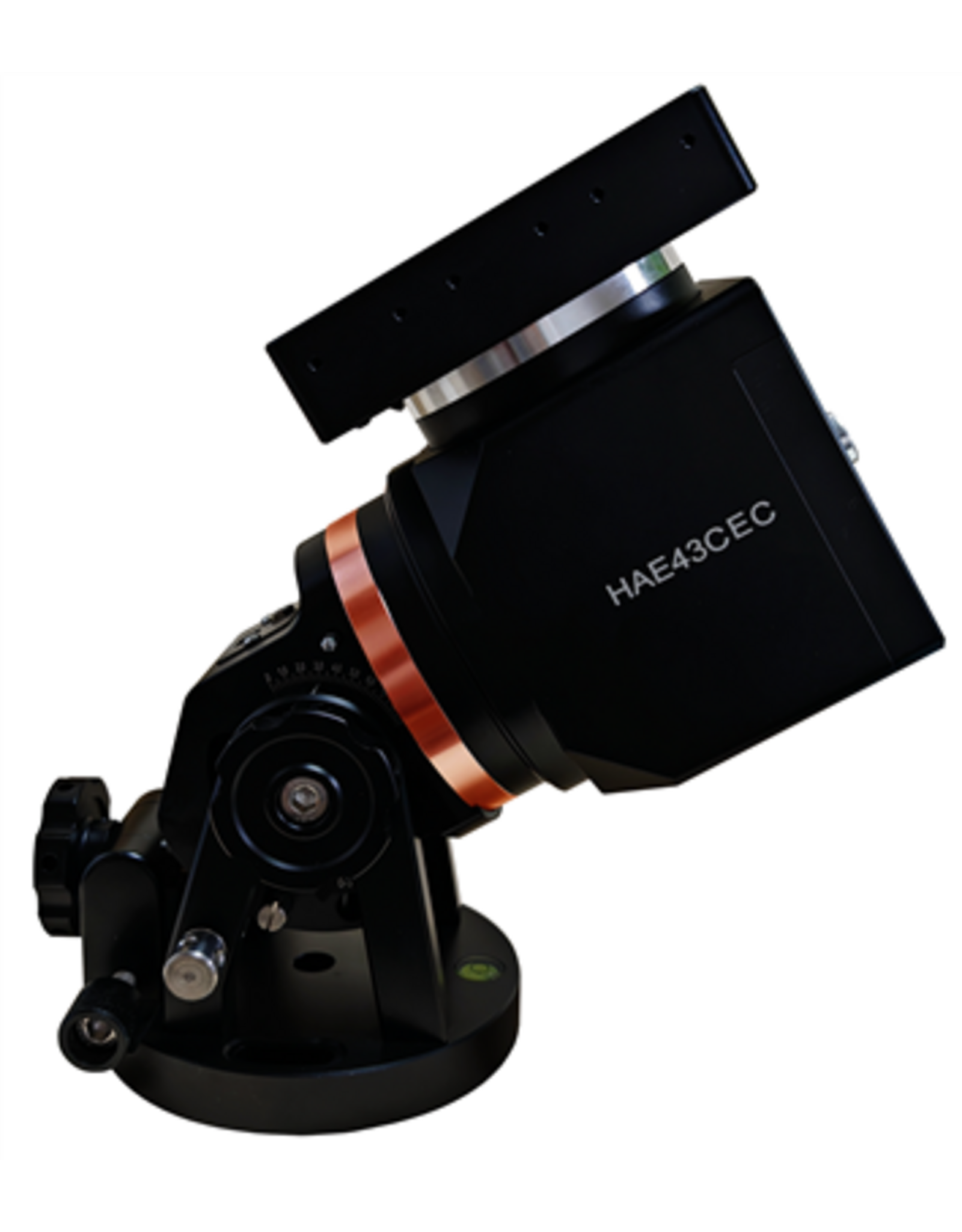

HAE43C-EC AZ/EQ dual SWG

The iOptron HAE43C-EC is a dual-mode mount head (Alt-Azimuth and Equatorial) that uses advanced Strain-Wave Gear (SWG) drives for both the RA and DEC axes. The “EC” designation indicates the inclusion of a high-precision RA axis encoder. Designed for portability without sacrificing performance, the mount offers a strong payload capacity relative to its weight.

Key Features

• Strain-Wave Gear system on both axes (RA & DEC) for minimal backlash, high precision and compact form factor.

• High-precision RA axis encoder (EC version) for enhanced tracking accuracy, potentially enabling longer exposures with less guiding.

• Dual-mode operation: can be configured in Alt-Az mode for visual observing or switched to Equatorial mode for tracking / imaging.

• Excellent weight-to-payload ratio: payload capacity ~44 lb (20 kg) without counterweight, with mount head weight ~12.6 lb (5.7 kg) including saddle.

• Built-in electronic friction brake for safe stop in case of power interruption.

• CNC-machined all-metal construction with anodized finish, durable and field-worthy.

• Dual dovetail saddle compatible with Vixen & Losmandy-D style plates — provides flexibility in optical tube mounting.

• USB-C port / computer connectivity for firmware upgrades or control (ASCOM/INDI) when used without handset.

Technical Specifications (Highlights)

• Payload capacity (without counterweight): ~44 lb (20 kg)

• Mount head weight (including saddle): ~12.6 lb (5.7 kg)

• Gear period: ~270 seconds (for the SWG system)

• Mount modes: AZ & EQ dual-mode

• Autoguide port: ST-4 compatible

• Operating temperature range: approx –20 °C to +40 °C (-4 °F to ~104 °F)
