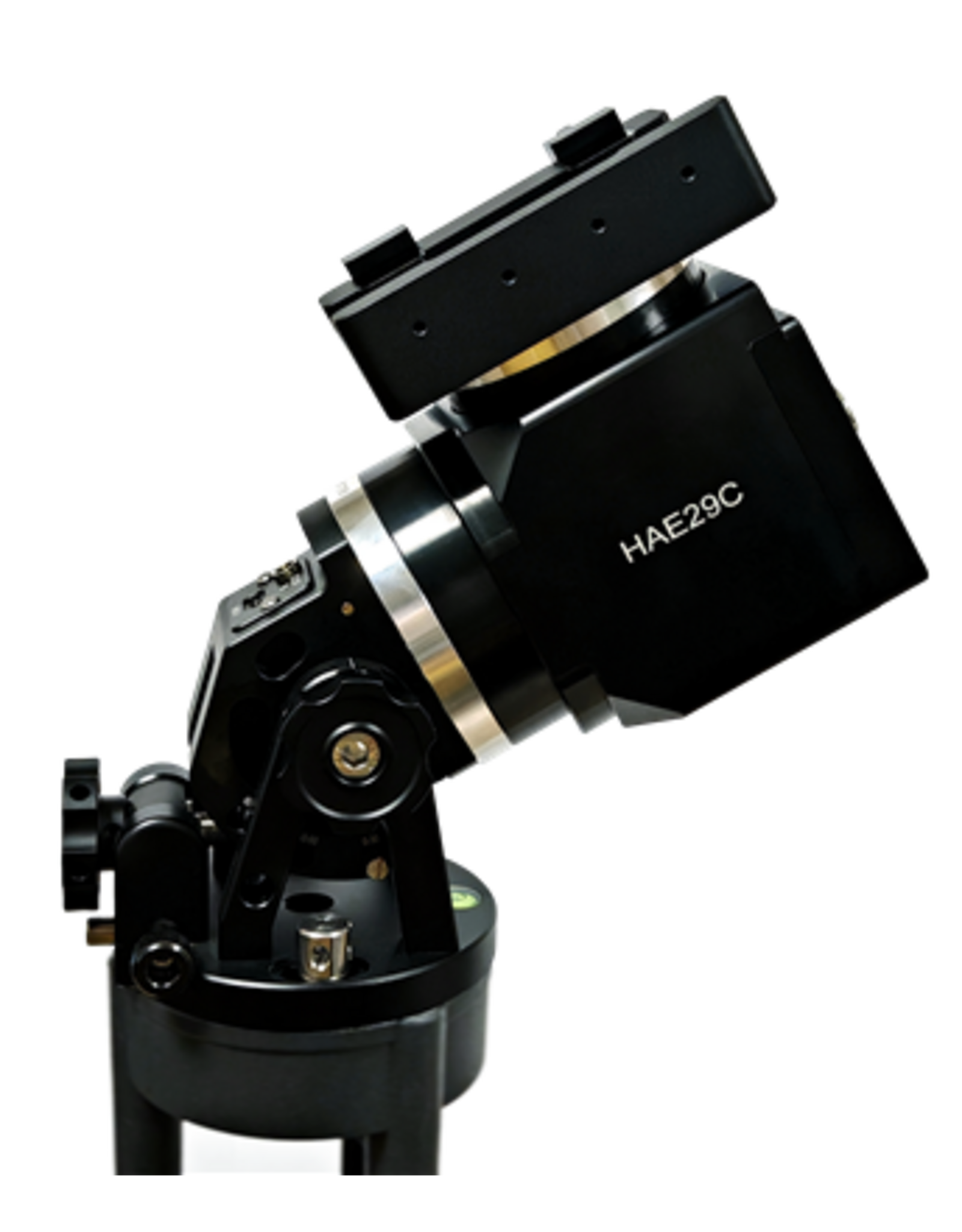

iOptron HAE29C AZ/EQ dual SWG
iOptron HAE29C AZ/EQ dual SWG
$2,359.00
Availability: More on the Way to us
Delivery time: More on the Way to Us

The iOptron HAE29C AZ/EQ Dual SWG is a highly compact, advanced “hybrid” mount head that supports both Alt-Azimuth (AZ) and Equatorial (EQ) modes. It uses strain-wave gear (also known as harmonic drive) on both the Right Ascension (RA) and Declination (DEC) axes — delivering a very favorable payload-to-weight ratio in a small package.

The “C” version indicates built-in WiFi and integrated control board (so you can run it with a tablet or computer rather than a dedicated handset).

With a mount head weight of only about 8.15 lbs (≈3.7 kg including saddle) and a stated payload of up to 29.7 lbs (≈13.5 kg) without counterweight (and up to ~40 lbs/18 kg with optional counterweight), this mount is optimized for portable imaging or grab-and-go setups.

Key Features

  • Strain-wave gear systems on both RA and DEC axes, offering minimal backlash, compact size and good tracking performance.

  • Dual-mode design: switchable between Alt/Az mode (for simpler setup, visual use) and Equatorial mode (for tracking/astrophotography).

  • Built-in WiFi and integrated control board (in “C” version) — allowing control via smartphone/tablet or computer, reducing reliance on a traditional hand controller.

  • USB and 12 V accessory ports built into the saddle to simplify cabling and accessory integration.

  • Electronic friction brake & power-down memory: if power is interrupted, the mount can stop safely and resume tracking or GoTo without full re-alignment.

  • Dual-style dovetail saddle (Vixen & Losmandy) for flexibility in mounting different optical tubes.

  • Very lightweight and compact design, making it ideal for mobile astronomy, field work, or setups where portability is key.

Technical Specifications (Typical)

  • Mount Head Weight: ~8.15 lbs (3.7 kg) including dovetail saddle.

  • Payload (without counterweight): ~29.7 lbs (13.5 kg) under ideal conditions (CG near RA axis).

  • Payload (with optional counterweight): up to ~40 lbs (18 kg).

  • Gear Period: 360 seconds (i.e., reduction ratio corresponds) per iOptron spec.

  • Periodic Error: < 36 arcsec peak (i.e., < ±18 arcsec) under stated conditions.

  • Maximum Slew Speed: ~6°/sec (per spec)

  • Power: DC 12 V, typically ~0.6 A (tracking) and ~1 A (GoTo).

  • Operating Temperature: approximately –20 °C to +45 °C (-4 °F to ~113 °F) depending on spec.
