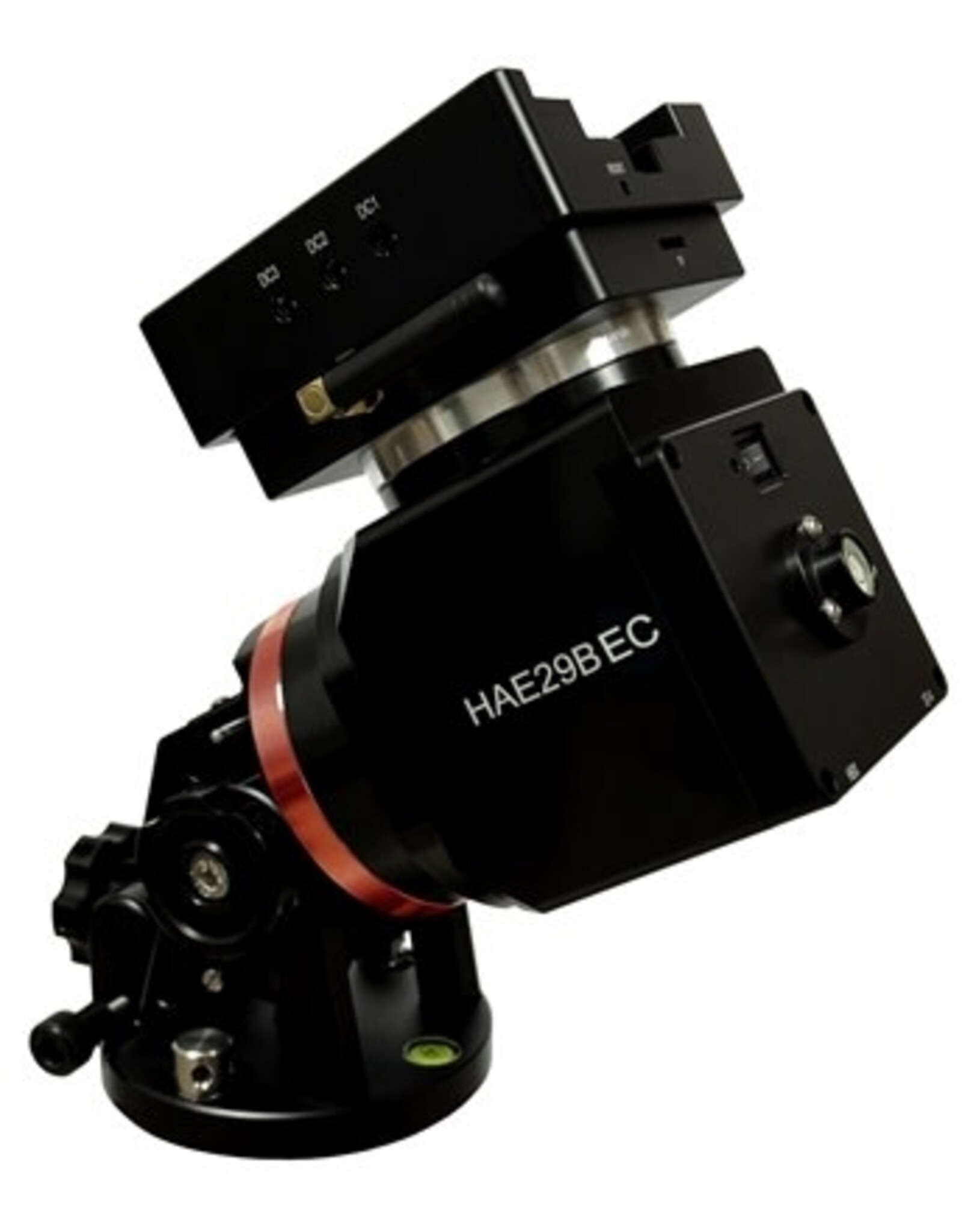

HAE29B-EC AZ/EQ dual SWG w/ iMate
| Availability: | More on the Way to us |
| Delivery time: | More on the Way to Us |
The HAE29B-EC is a compact, high-performance hybrid mount head from iOptron — designed for both Alt-Azimuth (AZ) and Equatorial (EQ) operation (“Dual AZ/EQ”). Its standout feature is the full strain-wave gear drive system on both axes (RA & DEC) combined with an on-board “iMate” computer system for advanced control and automation. According to iOptron, it weighs about 8.6 lbs (≈3.9 kg including saddle) and supports a payload of approximately 29 lbs (≈13 kg) (without counterweights).
Key Features
- Strain-Wave Gear Technology on both RA & DEC: Compact, low-backlash drives for precision tracking in a light package.
- Dual-Mode Design (AZ & EQ): Use it as a simple Alt-Az mount for general observing, or switch to Equatorial mode for tracking and imaging.
- iMate Built-in Computer:
- 64-bit ARM board with 32 GB eMMC + microSD slot up to 64 GB.
- Preloaded planetarium/control software (KStars/Ekos/INDI) enabling full automation.
- Ports: 3×12 V DC outputs, 2× USB2.0, 1× USB3.0.
- Built-in WiFi – operates without a dedicated hand-controller (though the optional iOptron 8411 handset can be used).
- High Precision RA Encoder (EC version): The “-EC” suffix indicates the inclusion of a high precision encoder on the RA axis, supporting real-time periodic error correction (RPEC) for elevated tracking accuracy.
- Ultra-Lightweight Head with Strong Payload: 8.6 lbs head weight vs 29 lbs payload (approx). Great weight-to-payload ratio for grab-and-go or travel setups.
- All-Metal CNC Machined Construction: Durable build with black anodized finish for long-term field use.
- Electronic Friction Brake & Power-Down Memory: The mount can safely lock in case of power interruption and resume its last position without a full re-alignment.
- Dual Saddle: Accepts both Losmandy and Vixen style dovetail plates, giving flexibility with optical tubes.
- Integrated Cabling & Ports: No external cable wraps required; tidy cable routing for field setups.
Technical Specifications (Selected)
- Mount weight: ~8.6 lbs (~3.9 kg) including dovetail saddle.
- Payload (without counterweight): ~29 lbs (~13 kg).
- Gear period / reduction: 360 seconds (for basic gear period) – as noted by iOptron.
- Autoguide port: ST-4 compatible.
- Built-in WiFi and USB connectivity.
- Operating temperature range: approx. –20 °C to +40 °C (typical spec for mounts in this family)
