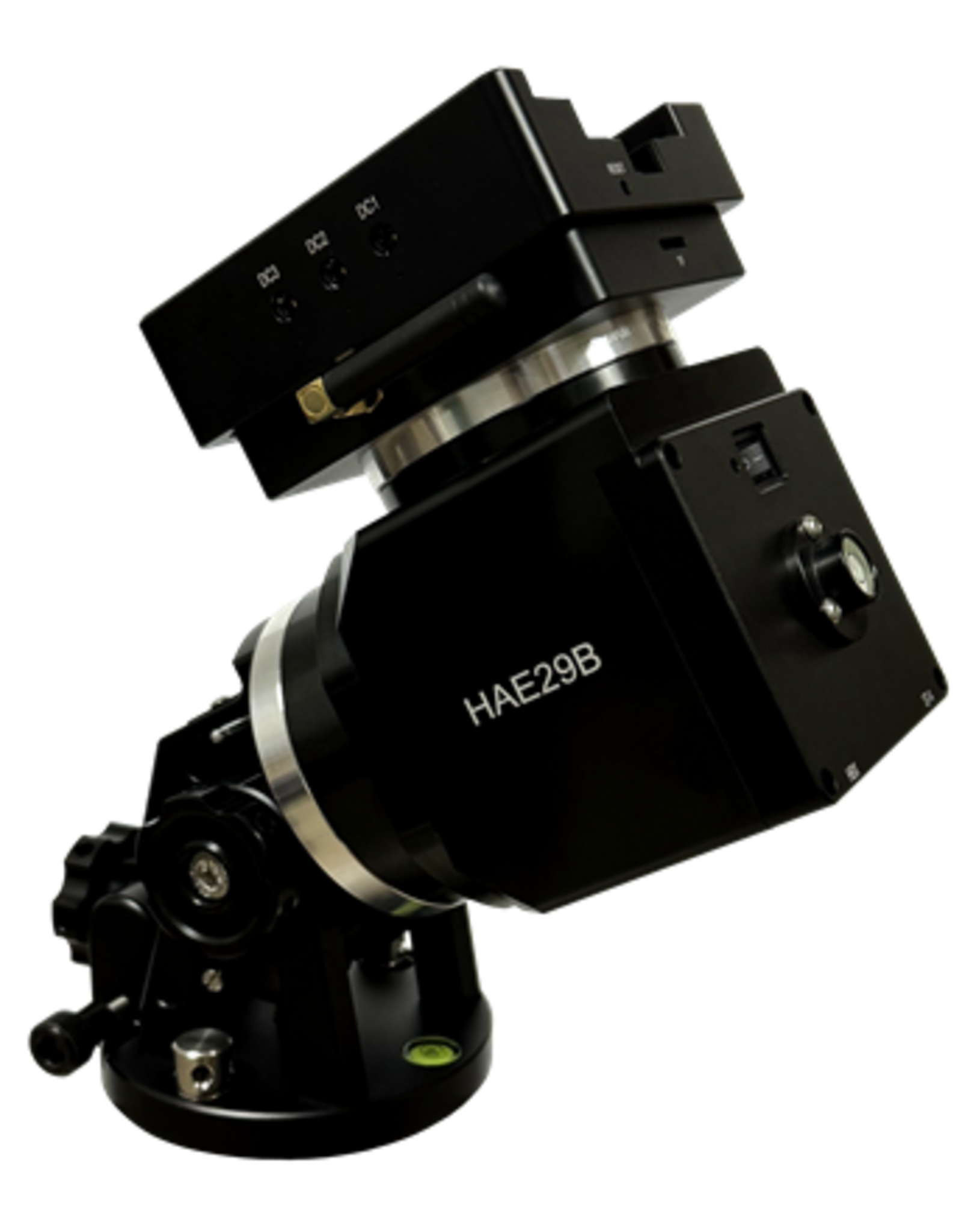

iOptron HAE29B AZ/EQ dual SWG w/ iMate
iOptron HAE29B AZ/EQ dual SWG w/ iMate
$2,529.00
Availability: More on the Way to us
Delivery time: More on the Way to Us

The iOptron HAE29B is a compact dual-mode (Alt-Azimuth / Equatorial) mount head employing advanced strain-wave-gear (SWG) drive technology on both the RA and DEC axes. It comes with the built-in “iMate” onboard computer/control system — meaning you don’t necessarily need a separate hand-controller.

Weighing only around 8.6 lb (≈3.9 kg including the dovetail saddle) but rated for a payload of up to 29 lb (≈13 kg) (without a counterweight) makes this an excellent choice for portable or travel rigs.

Key Features

  • Advanced Strain-Wave Gear Technology on both RA & DEC axes for high precision in a compact form factor.

  • Payload capacity approximately 13 kg (29 lb) with mount weight ~3.9 kg (8.6 lb) including saddle.

  • Dual-mode operation: You can use it in Alt-Azimuth mode (for ease of setup) or Equatorial mode (for tracking/imaging).

  • Built-in iMate computer: Ships with an open-source embedded computer board, pre-loaded with e.g. KStars/Ekos/INDI drivers, and features multiple ports (3× 12 V DC outputs, 2× USB2.0, 1× USB3.0) for connecting accessories.

  • Cable-drag-free mount operation: Because the iMate and accessory ports are integrated, the design supports tidy cable management and minimal external cable wrap.

  • Electronic friction brake: The mount features a brake mechanism to safely stop movement in the event of a power interruption.

  • Built-in WiFi and USB-C (on some ports) for control via tablet, computer or smartphone, and firmware upgrades.

  • Dual saddle compatible with both Vixen and Losmandy-D style dovetails for flexibility in mounting optical tubes.

  • Ultra-compact, all-metal CNC machined body with black anodized finish for durability and portability.

Technical Specifications (Typical)

  • Mount weight: ~3.9 kg (≈8.6 lb) including dovetail saddle.

  • Payload capacity (without counterweight): ~13 kg (≈29 lb) under defined conditions.

  • Gear period (reduction): 360 seconds (indicating the mechanical period of the strain-wave drive) for this model.

  • Autoguide port: ST-4 compatible.

  • Operating temperature range: roughly -20 °C to +40 °C (hand controller and electronics may have narrower range).

  • Structure: All-metal CNC machined; finish anodized black.

  • Mount modes: Alt-Azimuth and Equatorial (“AZ/EQ Dual”).
