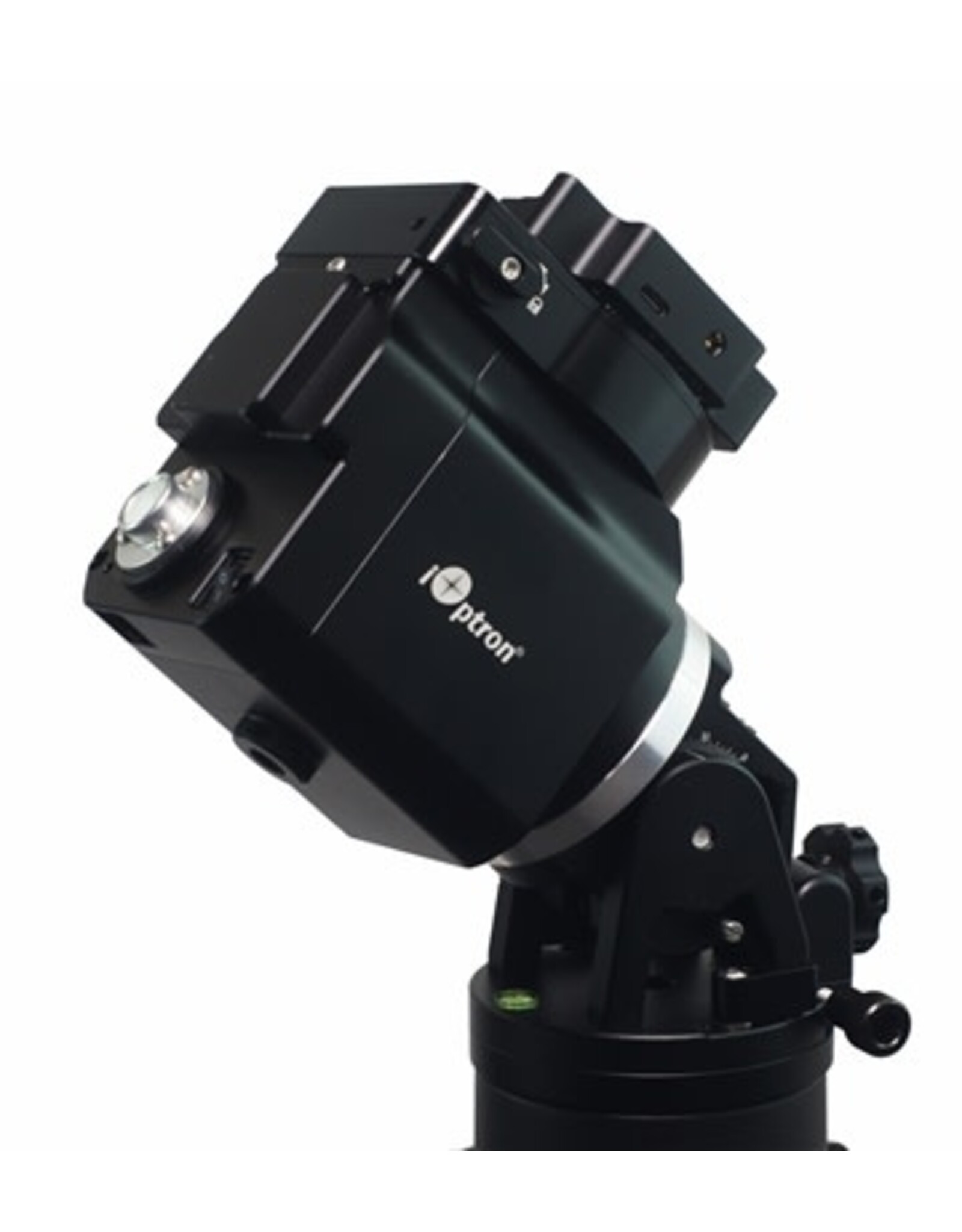

HAE16C Dual AZ/EQ SWG Hybrid Mount

The iOptron HAE16C is a hybrid alt-azimuth / equatorial mount head (“Dual AZ/EQ”) that employs a strain-wave gear (SWG) design on the RA/azimuth axis and a backlash-free worm/belt system on the DEC/altitude axis.
It’s designed for portability, flexibility (switching between AZ and EQ mode), modern control connectivity (WiFi, USB-C, ASCOM/INDI), and a robust yet lightweight build.
In short: a travel-friendly mount that punches above its weight.

Key Features

• Compact & lightweight: Mount head weighs approximately 5.7 lb (≈2.6 kg).

• Respectable payload capacity: Up to ~18 lb (~8.2 kg) without counterweight; with optional counterweight shaft and weight, up to ~26.5 lb (~12 kg).

• Hybrid drive system: RA uses strain-wave gear (high ratio, compact design) and DEC uses a backlash-free worm/belt system — combining advantages of both.

• Dual mode operation: Can be used in AZ (alt-azimuth) mode for visual observing or in EQ (parallactic/equatorial) mode for tracking more traditionally, offering flexibility in setup.

• Modern connectivity: Built-in WiFi, USB-C ports (one on base, one on dovetail saddle) for firmware upgrades, computer/telescope control, and mobile device apps.

• Safety & convenience features: Electronic friction brake on the RA axis (in the event of power interruption the mount can stop safely). Zero-position search/locator built in.

• Durable construction: All-metal, cast + CNC machined body with black anodized finish for rugged use.

• Saddle: Vixen-style dovetail saddle (compatible with Vixen-type plates; other adapters may be used).

• Support for computer-control: Compatible with iOptron Commander software, ASCOM (Windows), INDI (Mac/Linux) and mobile apps like SkySafari via WiFi.

• Tripod / counterweight optional: The head itself is sold alone (tripod/pier and counterweights often not included) — giving you flexibility in building your rig.

Technical Specifications (Highlights)

• Mount head weight: ~5.7 lb (2.6 kg)

• Maximum payload: ~18 lb (~8.2 kg) without counterweight shaft; up to ~26.5 lb (~12 kg) with optional counterweight shaft & weight.

• RA gear system: Strain-wave gear (ratio ~360:1)

• DEC gear system: Backlash-free worm/belt system

• Period / reduction: ~360 seconds for gear period (RA)

• Power consumption: ~0.6 A (tracking), ~1 A (GoTo) at 12 V DC.

• Power requirement: DC 12 V (5 A recommended)

• Latitude adjustment range: 0°-90° (so it can be used even near equator)

• Azimuth adjustment: ±6°

• Operating temperature: –20 °C to +40 °C (hand controller –10 °C to +40 °C)
