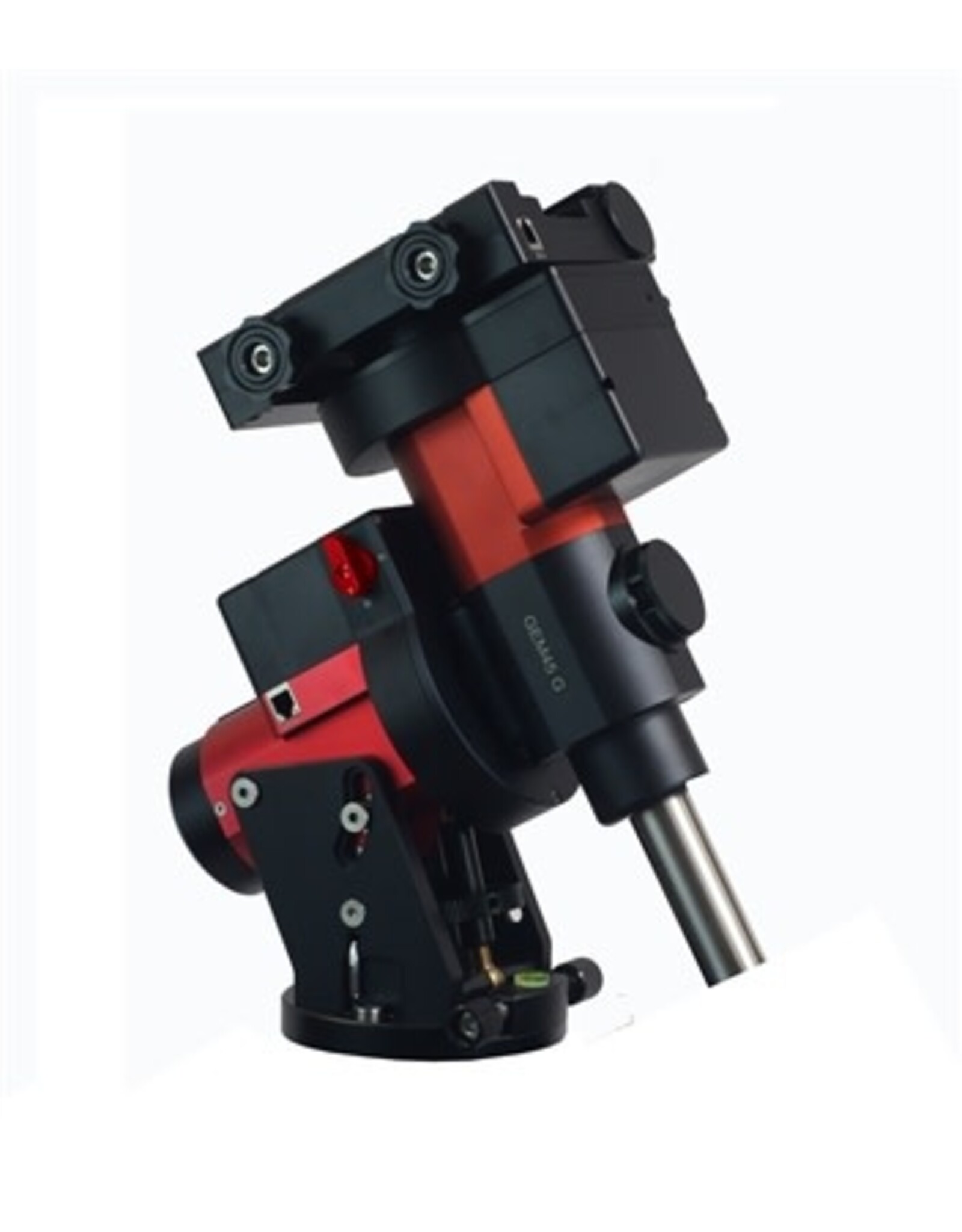

GEM45EC Mount Head

The iOptron GEM45EC is a high‑precision German equatorial mount head tailor‑made for serious astrophotography and demanding observational setups. With its advanced encoder‑driven system, integrated electronic polar finder, and robust mechanical construction, the GEM45EC offers outstanding tracking accuracy and strong performance for both mobile and fixed installations.

Key Features & Highlights:

• Payload capacity: Supports up to 45 lb (≈ 20 kg) of imaging gear (excluding counterweights).

• Mount weight: Around 17.5 lb (≈ 7.9 kg) for the head itself, giving a very competitive payload‑to‑mount‑weight ratio.

• Ultra‑precise tracking: Equipped with high‑resolution encoders delivering periodic error (PE) of less than 0.3 arc‑seconds RMS with real‑time periodic error correction (RPEC).

• Integrated electronic polar scope (iPolar™): Enables rapid and accurate polar alignment—even when Polaris is not visible.

• Dual‑dovetail saddle (6″ Losmandy/Vixen compatible): Accommodates a wide range of telescopes and accessories.

• High‑quality mechanics: CNC‑machined metal construction, large 68 mm bearings on RA/Dec axes, quick‑lock gear levers for the clutch system.

• Modern GoTo electronics: Includes a hand‑controller with a vast star database (212,000+ objects), USB and autoguider ports, built‑in GPS for location/time syncing.

• Cable management & portability: Internal cable routing helps avoid snagging, and the head is light enough for field use or observatory setups.

• (Depending on variant) Often bundled with a protective hard case for transport and storage.

Why It Stands Out:
For astrophotographers who demand serious capability without excessive bulk, the GEM45EC delivers. It strikes an excellent balance—high‑end performance (precision encoders, iPolar, strong payload) with a mount weight that keeps it transportable. Whether you’re hauling gear to a dark‑sky site or mounting in a permanent observatory, this head gives you professional‑grade tracking, control, and stability.

Typical Use Cases:

• A full imaging rig: large refractor or Ritchey‑Chrétien telescope plus monochrome camera, filter wheel, guider, etc., where high precision and stable tracking are essential.

• Mobile astrophotography setups: travel‑friendly but serious gear, benefitting from the lighter mount head and built‑in protection (case).

• Observatory installation: as a dedicated mount head coupled with a pier and fixed tripod, offering long‑term reliability and precision for long‑exposure imaging.

• Upgrading from a smaller mount: if you’ve outgrown your previous mount’s capacity or precision, the GEM45EC offers a substantial step‑up.
