iOptron CEM40 Mount Head in Hard Case
iOptron CEM40 Mount Head in Hard Case
$2,358.00
Availability: More on the Way to us
Delivery time: More on the Way to Us

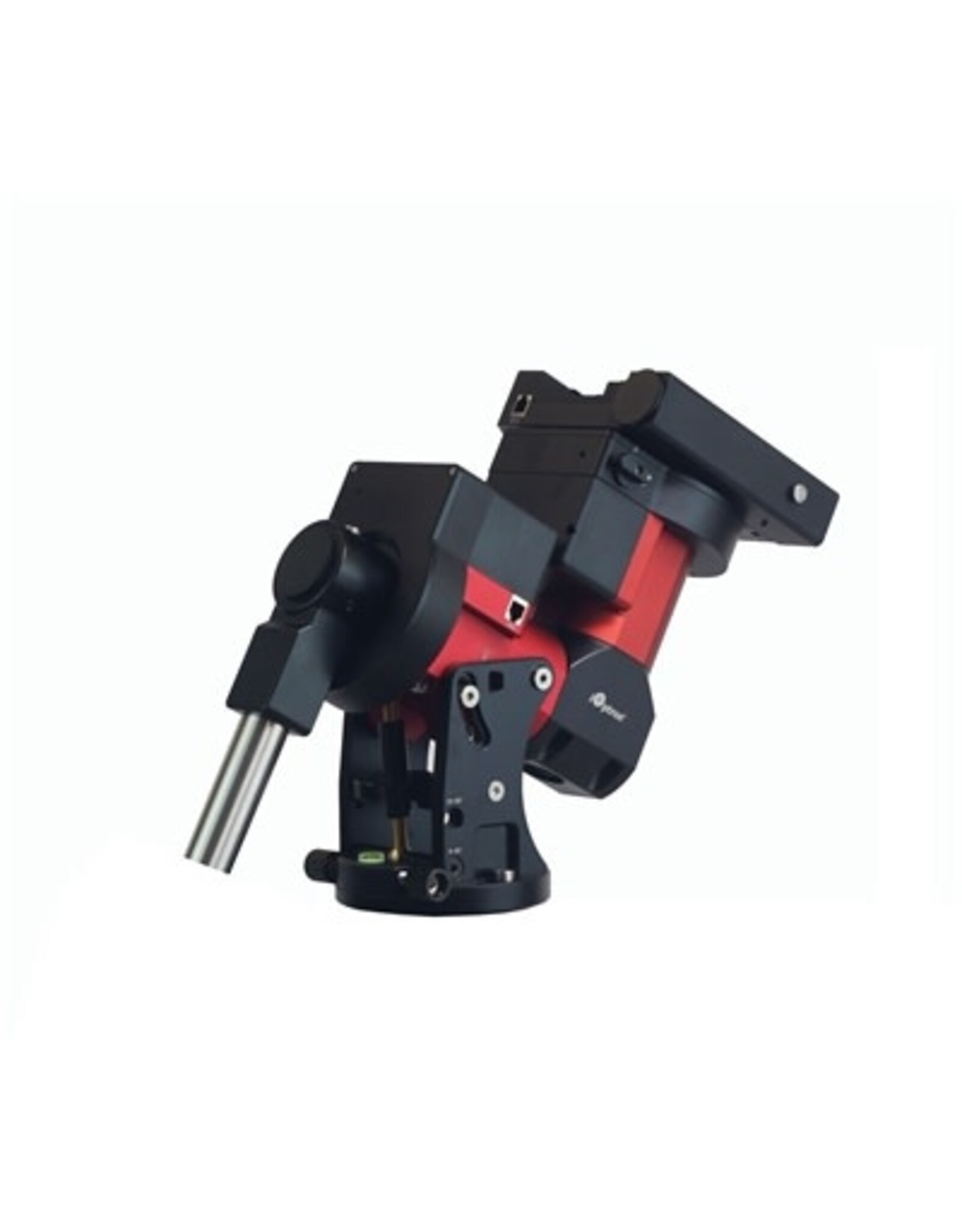

The CEM40 Mount Head in Hard Case from iOptron is a high-performance center-balanced equatorial Go-To mount head packaged with a custom hard carrying case for safe transport and storage. It is designed for both serious visual observing and astrophotography, offering a combination of strong payload capacity, premium machining, and convenience in handling.

Key Features

  • Payload capacity & build: Can support up to 40 lb (≈18 kg) of optical tube assembly (excluding counterweights) while the mount head itself weighs only about 17.4 lb (7.9 kg) in this version.

  • Center-balanced design: The “CEM” (Center Balanced Equatorial Mount) architecture places the telescope’s weight directly over the tripod/pier, improving stability and reducing moment loads common to traditional equatorial mounts.

  • Hard case included: This version of the CEM40 includes a rugged transport case to protect the mount head (and sometimes accessories) during travel or storage.

  • Precision and control:

    • All-metal CNC machined components with red/black anodized finish.

    • Dual saddle compatible with both Losmandy-style and Vixen-style dovetail plates for broad optical tube compatibility.

    • Built-in GoTo hand controller (e.g., Go2Nova 8407 or 8410 depending on version) with large object database for automated positioning.

  • Tracking accuracy & enhancements:

    • Low periodic tracking error < ±7 arc seconds in typical form.

    • Support for autoguiding via ST-4 port.

    • Cable management system for tidy setup.

  • Optional polar alignment aid: Some versions include integrated electronic polar finder (“iPolar”) to help align the mount accurately even when the pole star is obscured.

Technical Specifications (typical)

  • Mount Type: Center-Balanced Equatorial (CEM)

  • Maximum Payload: 40 lb (18 kg) (excluding counterweights)

  • Mount Head Weight: approx. 15.8 lb (7.2 kg) to 17.4 lb (7.9 kg) depending version.

  • Material: All-metal, CNC-machined, anodized finish.

  • Saddle: Dual dovetail (Losmandy + Vixen)

  • Tracking Motor: Precision stepper motors, micro-stepped for fine control.

  • GoTo & Controller: Includes Go2Nova hand controller with extensive database.

  • Hard Case: Included (for this version) to protect the mount head.

  • Notes: Tripod, counterweight(s), and other accessories may not be included — always check the specific kit detail.
