Celestron NexImage 20 Solar System Color Imager

NEXIMAGE 20 SOLAR SYSTEM COLOR IMAGER

• CAPTURE ULTRA-HIGH-RES IMAGES & VIDEO: Intuitive yet powerful, this camera captures detailed
  20 MP (5240 x 3840) stills and smooth AVI video of the planets, Moon, and Sun (with a solar filter).
  Easily stack your frames, create high-quality prints, or share your results online.

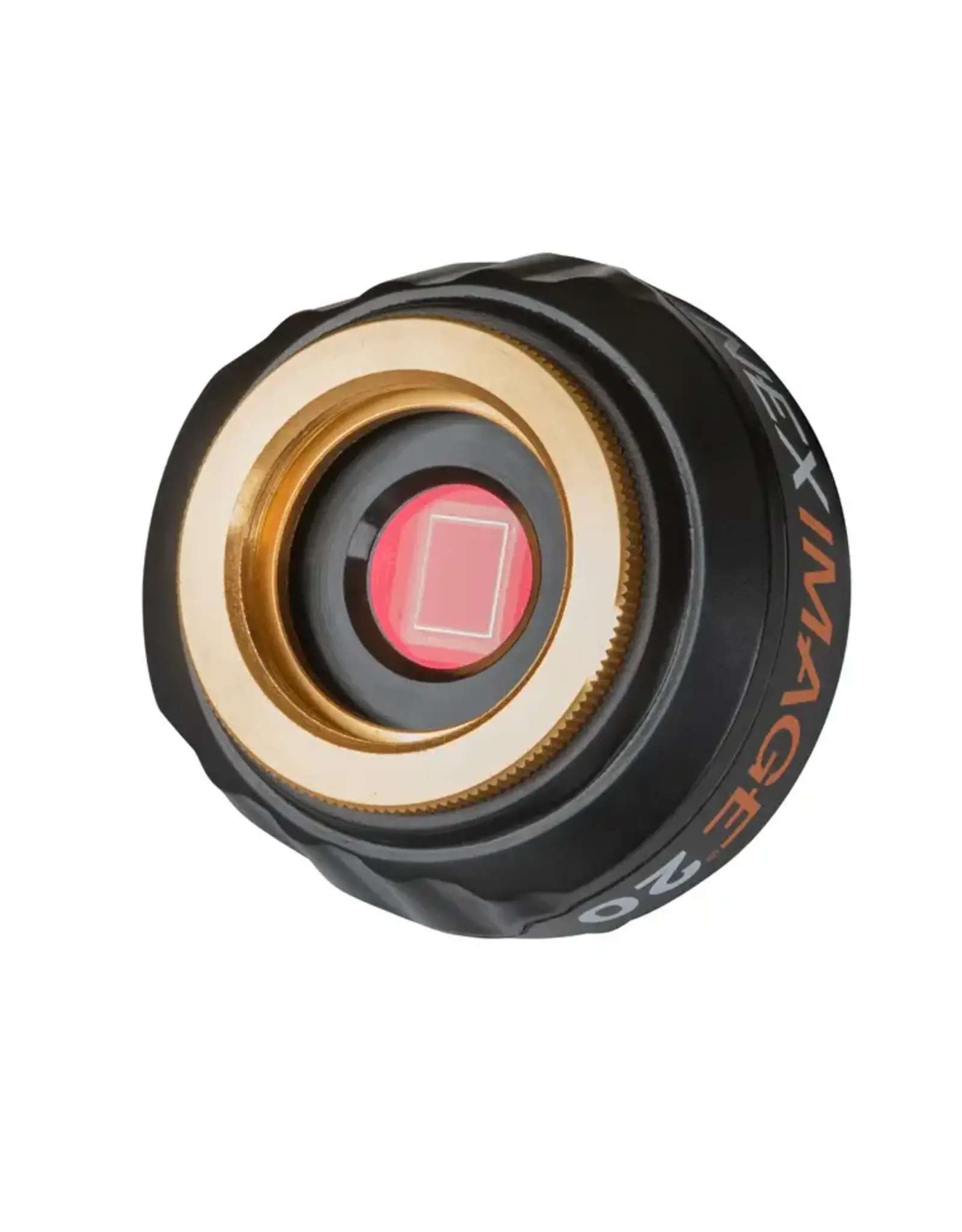

• HIGH-PERFORMANCE SENSOR FOR SHARPER DETAIL: The AR2020 back-illuminated CMOS sensor
  features 1.4 µm pixels on a 7.3 x 5.4 mm sensor. With 8.7 ke⁻/lux-sec sensitivity, it captures crisp
  detail even in challenging seeing conditions.

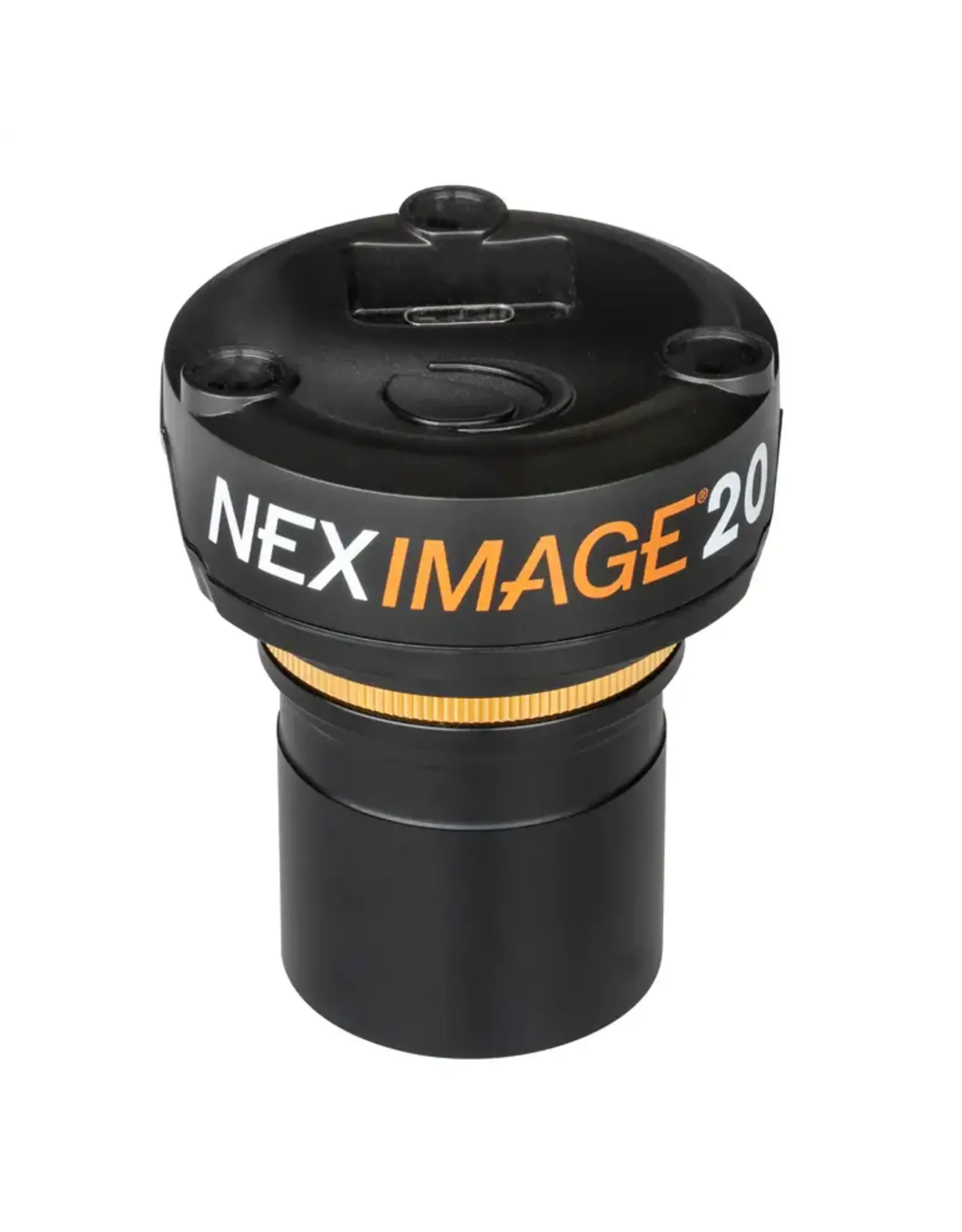

• INSTANTLY COMPATIBLE WITH YOUR TELESCOPE: NexImage 20 slides directly into your telescope’s
  1.25” eyepiece holder using the included nosepiece—no adapters needed. Capture sharp, high-
  resolution photos and smooth planetary videos right at the focal plane.
• ZOOM IN ON THE DETAIL WITH REGION OF INTEREST (ROI): Crop the frame to capture just your
  target—perfect for small objects like planets. ROI increases frame rate for smoother video, reduces
  file size, and speeds up stacking and post-processing.

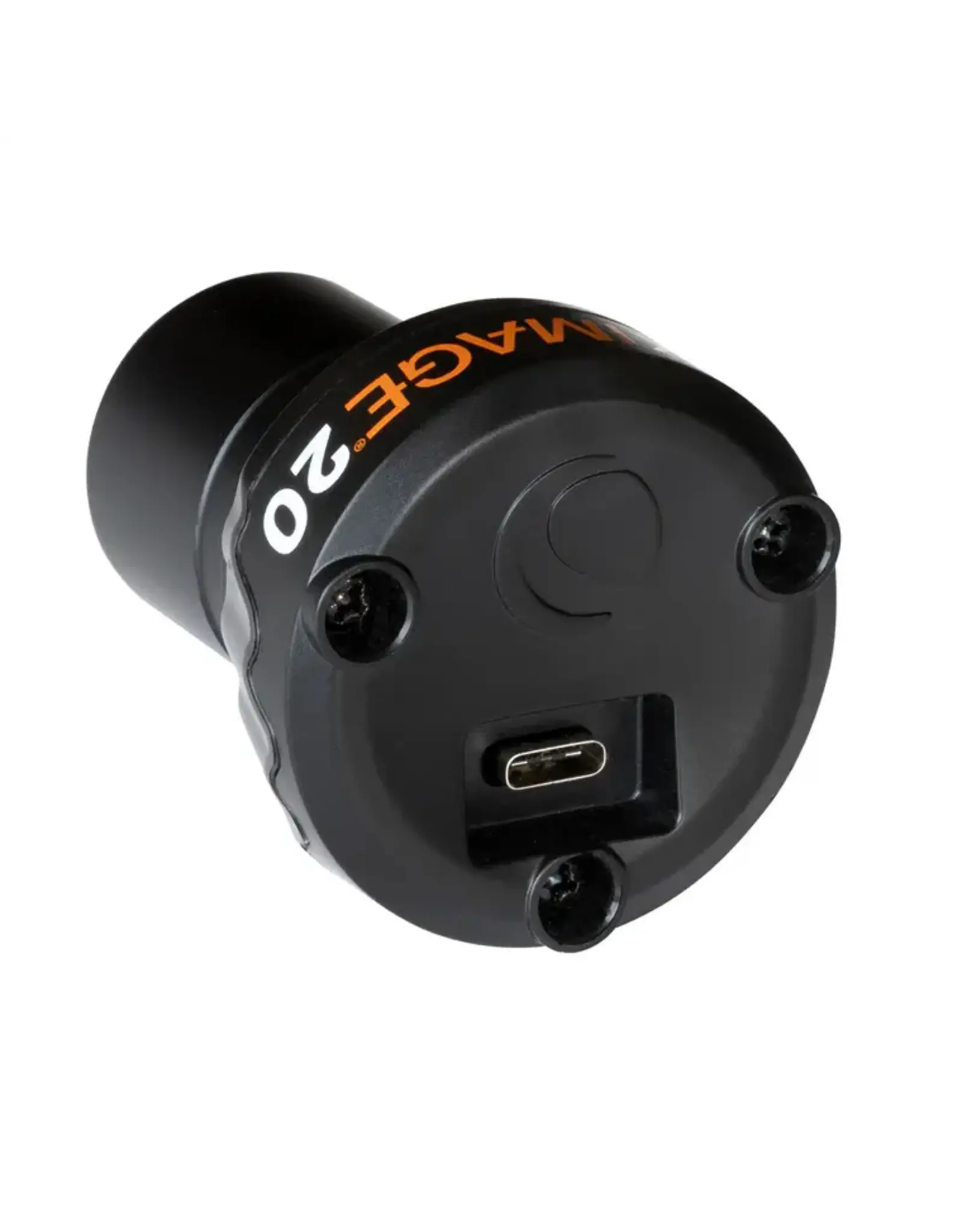

• EASY USB CONNECTION TO YOUR COMPUTER: Simply connect the NexImage 20 to your Windows
  PC via the included USB-A to USB-C cable.
• DUAL-PURPOSE: IMAGING + AUTOGUIDING: NexImage 20 doubles as a capable autoguider, helping
  your telescope stay locked on target during long-exposure astrophotography. For advanced users
  with additional guiding hardware, it adds precision tracking to your setup.
• iCAP SOFTWARE INCLUDED: Capture, preview, and save your images and video with
  iCap—Celestron’s dedicated imaging software for NexImage. Easily adjust exposure, gain, and frame
  rate, and take full control of your imaging workflow from your Windows PC.

Capture your own stunning images of the planets, Moon, and Sun (with solar filter) with the Celestron
NexImage 20. Our team engineered this high-performance USB camera for serious astrophotography.
With a powerful 20 MP back-illuminated CMOS sensor, NexImage 20 captures ultra-high-resolution
images at 5240 x 3840 pixels, giving you crisp, detailed results ready for stacking, printing, and sharing
online.

NexImage 20 is one of the best values in Solar System imaging today, delivering impressive detail and
producing images that rival those from cameras costing hundreds more. It's an excellent way to get
started with astroimaging—even from light-polluted city skies. If you can see a planet through your
telescope, you can capture it with NexImage 20!


Advanced Sensor Technology
At its core is the AR2020 sensor, optimized for low-light conditions with 1.4 µm square pixels on a 7.3 x
5.4 mm sensor. This combination delivers impressive sensitivity (8.7 ke⁻/lux-sec) and allows you to
capture fine surface features, even when atmospheric seeing isn’t ideal.
Use Celestron’s included iCap software to fine-tune exposure, gain, frame rate, and more—unlocking
the sensor’s full potential.

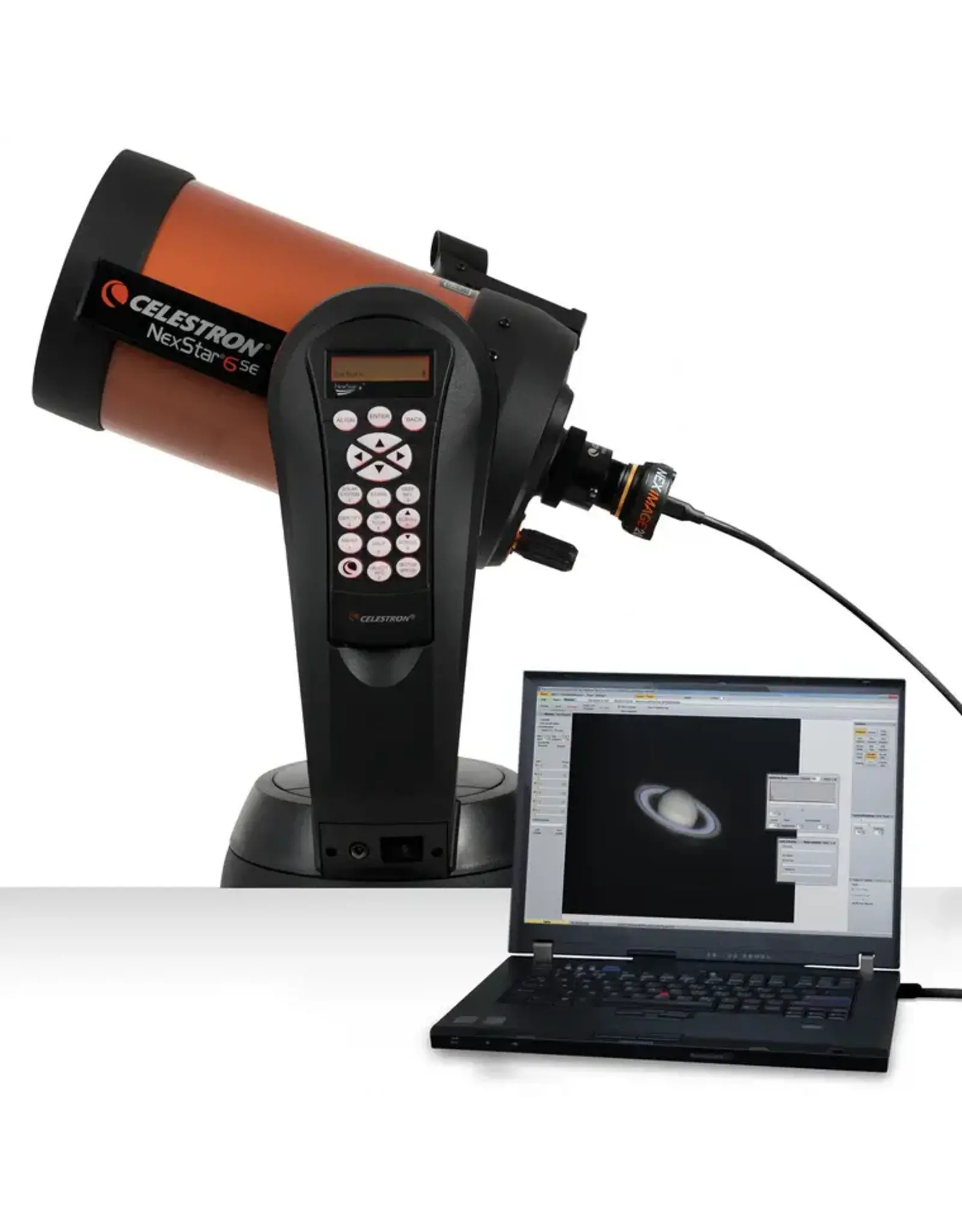

Easy Installation
Even if you’re brand new to astroimaging, getting started with NexImage 20 is fast and straightforward.
After installing the driver and  iCap software , assemble the camera by threading it onto the included
1.25” nosepiece. Then insert it into your telescope’s eyepiece holder, connect the USB-C cable to the
camera, and plug the USB-A end into your PC. That’s it; you’re ready to capture your first high-resolution
images and videos!


Region of Interest for Speed & Efficiency
Imaging the Full Moon or Sun will use a large portion of the NexImage 20 sensor. But if you’re pointing
your telescope at the planets, the Region of Interest (ROI) feature is a game changer. Instead of using
the entire sensor, ROI lets you crop to focus on just your target. This boosts frame rates for smoother
video while reducing file size. It also speeds up post-processing, especially when you’re stacking multiple
frames.


Built-In Autoguiding Capability
Beyond imaging, NexImage 20 can perform double-duty in your advanced astroimaging kit. Use it as a
precise autoguider for long-exposure, deep-sky astrophotography. With additional guiding hardware
(not included), NexImage 20 helps advanced users lock onto their target and maintain tracking accuracy
over time.
Specifications

Color or Monochrome: Color
Power Requirements: Powered by USB
USB: High-Speed USB 3.0, cable 10' length
Camera Housing
Construction: ABS with aluminum connection ring

Optical Window: IR Cutoff Filter
Pixel Size: 1.4 micron square
A/D Conversion: 10-bit RAW

Imaging Sensor: Sony AR2020 Back-Illuminated CMOS

Camera Resolution (in
Pixels): 5240x3840

Total Number of
Pixels: 20 MP

Mounting: 1.25" barrel and C-thread
Sensor Size: 7.3mm x 5.4mm (9mm diagonal)
Shutter: Electronic Rolling Shutter
Software
Compatibility: iCap | IC Capture | DirectShow | oaCapture

Operating
Environment: -40° - 104°F (-40° - 40°C)

Sub-Framing: Hardware ROI
Exposure Range: 0.0001 to 10 seconds
Frames per second: Up to 90 (8 fps at full frame)
Back Focus Distance: 13.1mm (0.51") with nosepiece, 10.6mm (0.41") without nosepiece

Recommended/Best
Usage: Getting started in lunar, solar, and planetary imaging

Weight: 2.0 oz (57 g)

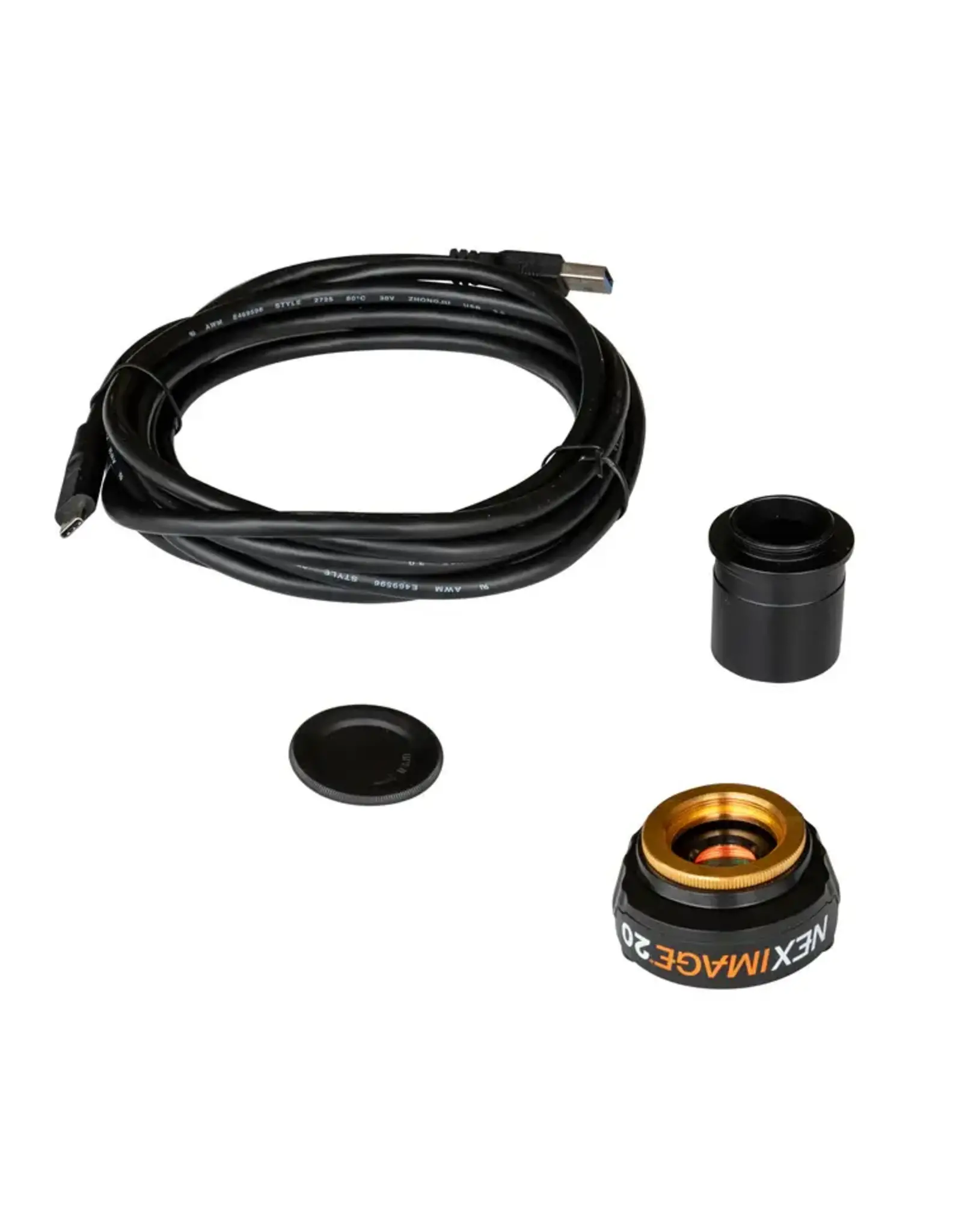

Included Items: NexImage 20 camera body| 1.25" nosepiece| USB cable|

Instruction manual
