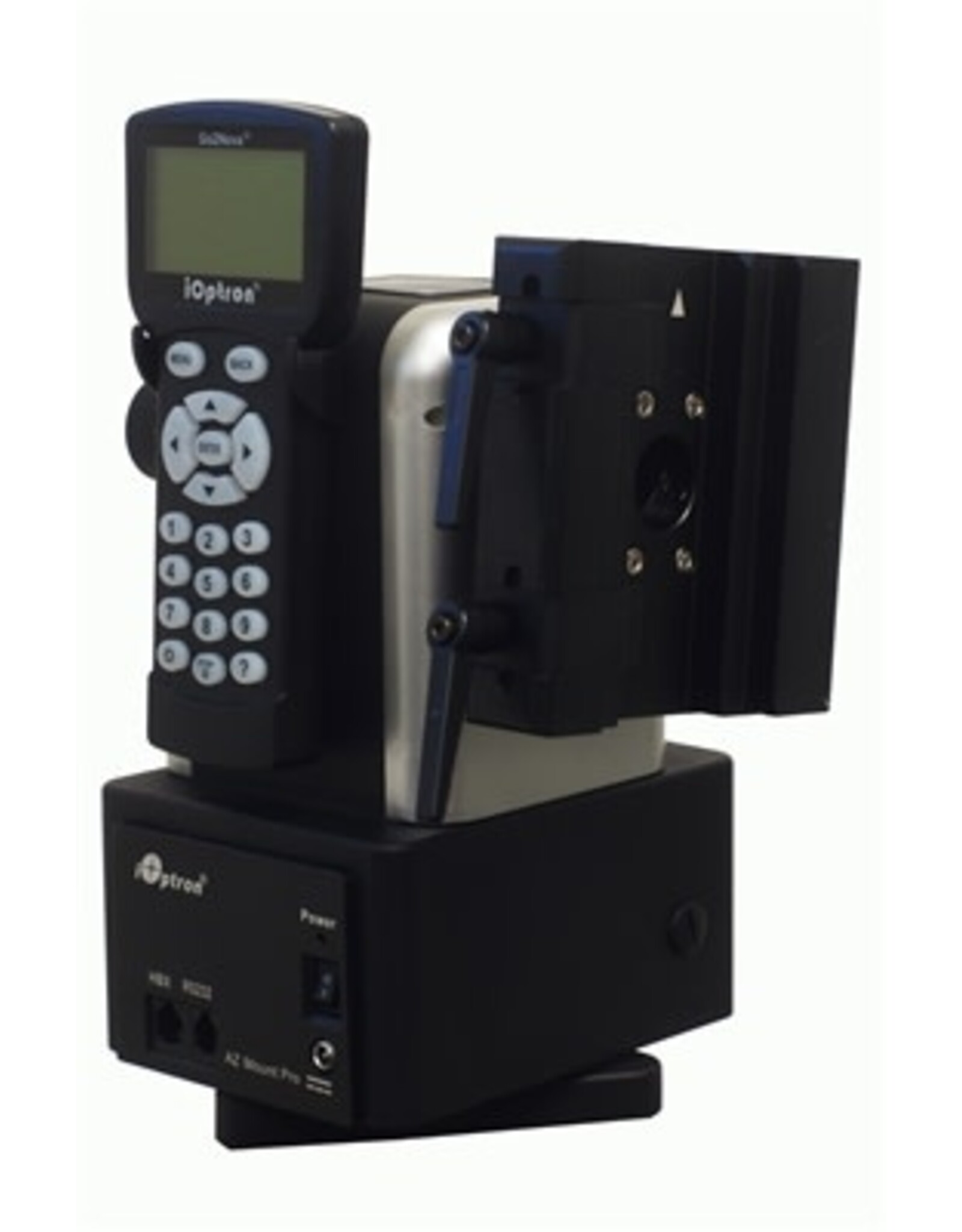

AZ Mount Pro Head

The AZ Mount Pro Head is the mount-head component of the iOptron “AZ Mount Pro” series, designed for advanced visual observing, outreach use or travel rigs. It offers full computerized Go-To and tracking capabilities in a “head only” format (tripod or pier sold separately in many cases). It is built for simplicity in setup, strong payload capacity for its size, and modern connectivity features.

Key Features

• “Level and Go” alignment — you simply level the head using its built-in bubble level, power it on, and the internal 32-channel GPS receiver plus angle/position sensors instantly determine location and orientation.

• Payload capacity: rated 33 lbs (≈15 kg) for the primary telescope, plus an optional 10 lbs (≈4.5 kg) secondary load capability.

• Mount head weight: approximately 13 lbs (≈6 kg) including battery and counterweight shaft, making it quite portable for its class.

• Built-in rechargeable lithium-ion battery (11.1 V / 4.4 Ah) with up to ~10 hours runtime at standard ambient (20 °C) according to manufacturer.

• Quiet, low-power stepper motor (128× micro-step) and synchronous belt transmission with aluminum worm wheel/brass worm gear design.

• Dual dovetail saddle (6″ Losmandy/Vixen style) for broad compatibility with optical tube.

• Built-in WiFi adapter and serial port for computer/firmware control; supports ASCOM, iOptron Commander, and mobile apps (e.g., SkySafari).

• Go2Nova® 8407 hand controller included (in most “head only” kit versions) with ~212,000 object database, illuminated LCD screen, and multiple slew-speeds.

• Retractable counterweight shaft (20 mm diameter) aids portability and compact storage.

• Memory of last position in event of power interruption (so you don’t lose alignment).

• Compact physical height: the head only stands about 10″ tall, making it ideal for travel/camp setups.

Technical Specifications (Summary)

• Mount Type: Altitude-Azimuth Go-To

• Body Material: Die-cast Aluminum

• Primary Payload Capacity: 33 lb (≈15 kg)

• Secondary Payload Capacity: 10 lb (≈4.5 kg)

• Mount Head Weight: ~13 lb (including battery/shaft)

• Motor Type: 128× Micro-step Stepper Motor

• Gear/Drive: Aluminum worm wheel + brass worm gear; belt-driven transmission

• Resolution: ~0.1 arc-second (as specified)

• Tracking Modes: Sidereal (celestial), solar, lunar, user-defined

• Power: Built-in Li-ion battery (11.1 V/4.4 Ah) providing ~10 hrs runtime at 20 °C

• Alignment: Built-in level bubble + GPS + angle/position sensors for automatic orientation (“Level & Go”)

• Connectivity: WiFi, serial port; supports ASCOM/PC & mobile control.

• Included: Aluminum hard-case, dual dovetail saddle, hand controller (in many kits)
